Send InquirySliding Table Vertical Injection Moulding Machine
Price 2405200.00 INR/ Unit
MOQ : 1 Unit

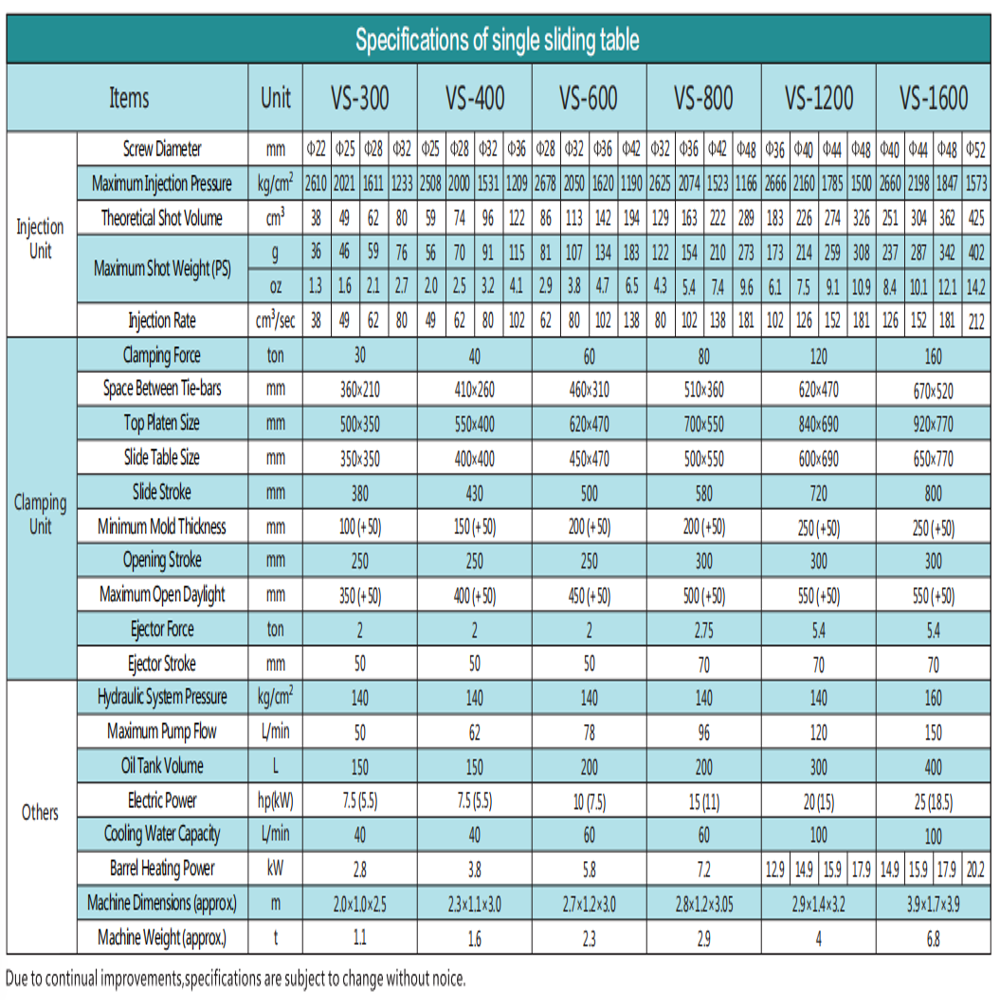

Sliding Table Vertical Injection Moulding Machine Specification
- Product Type
- Vertical Injection Molding Machine
- General Use
- Insert Molding / Overmolding / Plastic Injection Molding / Molding Machinery
- Material
- Aluminum Alloy
- Type
- Plastic Injection Molding Machine, Preform Injection
- Style
- Vertical
- Capacity
- 2200 Pcs/hr
- Weight (kg)
- 2.9 Tonne
- Computerized
- Yes
- Automatic
- Yes
- Control System
- PLC Control
- Clamping Force
- 80Ton kilogram-force (kgf)
- Mold Thickness
- 200(+50) Millimeter (mm)
- Ejector Stroke
- 70 Millimeter (mm)
- Ejector Force
- 26.95 Kilonewton (kN)
- Injection Rate
- 181 Cubic m/s
- Injection Pressure
- 1166 kgf/m2
- Screw Diameter
- 48 Millimeter (mm)
- Screw Torque
- standard kgf-mm
- Tie Bar Size
- 510X360MM
- Screw Stroke
- custom
- Opening Stroke
- 300 Millimeter (mm)
- Heating Power
- 11 Kilowatt (kW)
- Fuel Tank Capacity
- 1166 Kilogram(Kg)
- Pump Pressure
- 7.2 Bar
- Voltage
- 415V, 3 Phase (Option) Volt (v)
- Dimension (L*W*H)
- Approx. 2.8 x 1.2x 3.05 Meter (m)
- Feature
- Lower Energy Consumption, Smooth Running, High Speed Response, High Efficiency, ECO Friendly, Low Noise, High Performance
- Color
- Blue/White/Grey/Green (custom option)
- Warranty
- 12 months
- Hydraulic System
- Integrated
- Insert Molding
- Supported applications
- Control Panel
- Side mounted
- High Safety
- Guarded operator zone
- Machine Design
- Vertical structure
- Cooling System
- Integrated water cooling
- Custom Design
- Available on request
- Precision
- Microprocessor controlled
- Table Options
- Sliding/Rotary/Fixed
- Sliding Table
- For convenient loading
- Maintenance
- Low requirement
- Operator Access
- Front sliding table
- Visual Indicators
- Panel lights
Sliding Table Vertical Injection Moulding Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 100 Units Per Month
- Delivery Time
- 7 Days
- Main Domestic Market
- All India
About Sliding Table Vertical Injection Moulding Machine
Single Sliding Table Vertical Injection Moulding Machine! Ace your production with this hot-selling, top-tier solution boasting the lowest price on the market. Engineered with a glorious vertical structure, this exporter from China features a customizable capacity, robust 80-ton clamping force, and an advanced PLC-controlled microprocessor for unmatched precision. Enjoy high safety with a guarded operator zone and convenient loading via the single sliding table. Integrated hydraulic and water-cooling systems ensure seamless, low-maintenance operation. Available in turquoise, white, or grey; custom designs on request.
Versatility in Application, Superior Results
The Single Sliding Table Vertical Injection Moulding Machine supports insert molding, overmolding, and plastic injection molding methods. Designed for use in general molding machinery applications, it excels in automotive, electronics, and consumer goods manufacturing. Its application surface accommodates varied plastic materials, ideal for intricate and repetitive component creation. The sliding table provides easy access and efficient loading, making it suitable for both detailed prototyping and large batch production.
Supply, Market Scope & Payment Flexibility
We charge competitive rates to deliver this ace injection molding solution across the main domestic markets in China and globally. Supply ability is robust, ensuring timely order fulfillment. Proposal amounts are tailored to your project needs, with payment terms arranged via leading options for your convenience. Quick estimates are provided upon request, ensuring your procurement process is streamlined and transparent from quote to delivery.
Versatility in Application, Superior Results
The Single Sliding Table Vertical Injection Moulding Machine supports insert molding, overmolding, and plastic injection molding methods. Designed for use in general molding machinery applications, it excels in automotive, electronics, and consumer goods manufacturing. Its application surface accommodates varied plastic materials, ideal for intricate and repetitive component creation. The sliding table provides easy access and efficient loading, making it suitable for both detailed prototyping and large batch production.
Supply, Market Scope & Payment Flexibility
We charge competitive rates to deliver this ace injection molding solution across the main domestic markets in China and globally. Supply ability is robust, ensuring timely order fulfillment. Proposal amounts are tailored to your project needs, with payment terms arranged via leading options for your convenience. Quick estimates are provided upon request, ensuring your procurement process is streamlined and transparent from quote to delivery.
FAQ's of Single Sliding Table Vertical Injection Moulding Machine:
Q: How does the Single Sliding Table Vertical Injection Moulding Machine enhance operational safety?
A: The machine features a guarded operator zone, side-mounted control panel, and visual panel indicators to maximize operator safety during use.Q: What are the main applications of this vertical injection molding machine?
A: It is primarily used for insert molding, overmolding, and plastic injection molding across automotive, electronics, and consumer goods industries.Q: Where can the machine be supplied and what is the typical supply capacity?
A: As an exporter, manufacturer, and supplier based in China, the machine can be supplied domestically and internationally with robust supply ability to meet large and small orders.Q: What is the process to request a customized design or proposal amount?
A: You can request a custom design or proposal amount by contacting our sales team, who will provide prompt estimates and tailored solutions based on your requirements.Q: What benefits does the front sliding table offer for operators?
A: The front sliding table provides convenient loading and unloading, enhancing productivity and ergonomics while lowering cycle times for operators.
