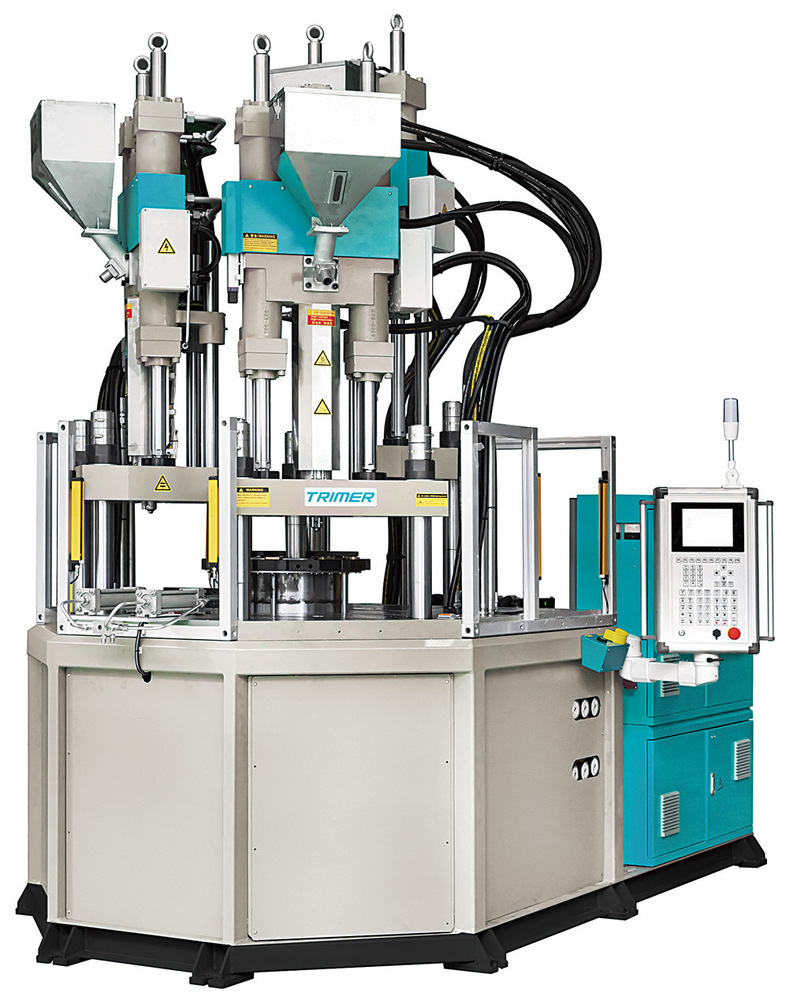

Three Colors Vertical Moulding Machine

Price 5920000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Three Colors Vertical Moulding Machine Specification

Product Type
Three Colors Handle Vertical Injection Moulding Machine

General Use
Handle manufacturing, multi-color molding

Material
Other

Type
Preform Injection, Plastic Injection Molding Machine

Style
Vertical

Capacity
550 Pcs/hr

Weight (kg)
7800 Kilograms (kg)

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Clamping Force
180 Ton kilogram-force (kgf)

Mold Thickness
200 +50 Millimeter (mm)

Ejector Stroke
70 Millimeter (mm)

Ejector Force
39.2 Kilonewton (kN)

Injection Rate
181 cubic cm/s

Injection Pressure
1166 kgf/m2

Screw Diameter
48 Millimeter (mm)

Screw Torque
Standard, as per model kgf-mm

Tie Bar Size
Standard, per platen size

Screw Stroke
Standard, as per mold

Opening Stroke
300 Millimeter (mm)

Heating Power
14.9 Kilowatt (kW)

Fuel Tank Capacity
400 Liter (L)

Pump Pressure
160 kg/cm2 kgf/m2

Voltage
380V/415V(Custom) Volt (v)

Dimension (L*W*H)
3.0x2.2x3.6 Meter (m)

Feature
High Performance, ECO Friendly, Low Noise, Lower Energy Consumption, Smooth Running, High Speed Response, High Efficiency

Color
custom

Warranty
12months

Max. Shot Weight (PS)
183 g

Vertical clamping
Yes

Max. Open Daylight
450 (+50+50) mm

Machine Dimension (approx)
3.02.5 m

Ergonomic operator panel
Integrated LCD

Max. Pump Flow
150 L/min

Multi-hopper system
Three hoppers

Rotary Table Diameter
As per platen

Theoretical Shot Volume
Max 194 cm3

Top Platen Size
700630 mm

Cooling Water Capacity
100 L/min

Machine Weight (ton)
8.6

Three Colors Vertical Moulding Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Three Colors Vertical Moulding Machine

Three Colors Handle Vertical Injection Moulding Machine

presents a prodigious opportunity-a hot deal not to be missed! Specially engineered for handle manufacturing and multi-color molding, this lofty machine boasts a max theoretical shot volume of 194 cm3, max shot weight of 183g (PS), and powerful 180-ton clamping force. With three-hopper versatility, computer-controlled precision, and an ergonomic LCD operator panel, this automatic vertical injection molding machine ensures seamless operation. The rotary table style and integrated PLC control elevate performance, while its advanced construction accommodates various plastics like polypropylene and ABS. An exceptional offer for manufacturers and exporters seeking multi-color excellence.

Functional Uses & Advantages of the Three Colors Handle Vertical Injection Moulding Machine

Operated vertically with an ergonomic LCD-equipped panel, this machine is designed for the automatic production of multi-color plastic handles using a straightforward and reliable process. Its rotary table and three-hopper system allow simultaneous molding of up to three colors, ensuring high efficiency and superior product quality. The machine is ideal for manufacturing diverse handle types, offering significant versatility, low labor involvement, and consistent results with minimal supervision in professional, industrial settings.

FOB Port, Delivery Time & Packaging for Three Colors Handle Vertical Injection Moulding Machine

Shipped goods depart from China's major FOB ports, with a standard delivery timeline tailored to the sale price agreement-typically 25 to 45 days after order confirmation. Each shipment is meticulously packed to prevent transit damage and ensure the machine arrives safely. Packaging includes reinforced crates and protective material, guaranteeing the illustrious equipment reaches your facility ready for installation and rapid production commencement upon arrival.

FAQ's of Three Colors Handle Vertical Injection Moulding Machine:

Q: How does the rotary table benefit the molding process in this machine?

A: The rotary table allows for seamless multi-color injection and simultaneous operations, increasing production efficiency and ensuring precise alignment for complex handle designs.

Q: What types of plastic materials can be processed with the Three Colors Handle Vertical Injection Moulding Machine?

A: This machine is compatible with common plastics such as polypropylene and ABS, making it highly versatile for various handle manufacturing requirements.

Q: When can I expect the shipment of my ordered machine to arrive?

A: Once the sale price is agreed upon and payment is confirmed, delivery typically takes 25 to 45 days, depending on production and shipping schedules.

Q: Where is the FOB port for shipping the machine?

A: The machine is shipped from major FOB ports in China, with precise port details provided upon order confirmation.

Q: What are the key advantages of using this vertical injection moulding machine for handle production?

A: The machine offers superior precision, supports multi-color molding, reduces labor, and achieves prodigious throughput with each cycle, all while maximizing the quality and consistency of finished products.
